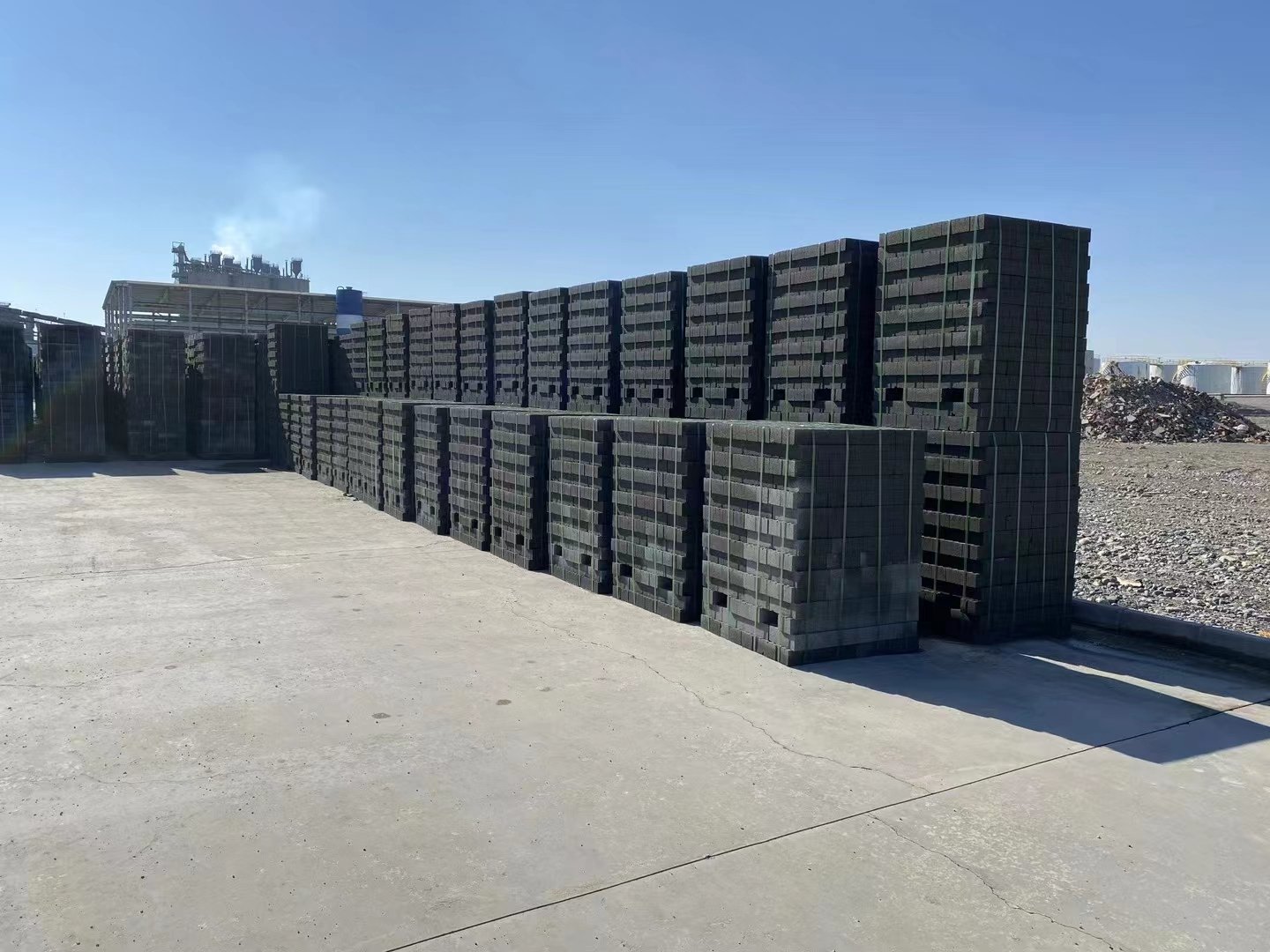

Palletized Finished Goods
描述
Technical Parameters
| Brick Type | Pallet Size 1 | Pallet Size 2 | Pallet Size 3 |
| Standard Brick 240x50x115 | 960x960mm (76 pcs/layer, 52/hole, 15,960 pcs/h, 12 layers, 888 pcs/pallet) | 1200x1200mm (120 pcs/layer, 96/hole, 20,160 pcs/h, 12 layers, 1,416 pcs/pallet) | – |
| Face Brick 200x100x60 | 800x800mm (32 pcs/layer, 20/hole, 6,720 pcs/h, 22 layers, 692 pcs/pallet) | 1000x1000mm (50 pcs/layer, 35/hole, 10,500 pcs/h, 22 layers, 1,085 pcs/pallet) | 1200x1200mm (120 pcs/layer, 96/hole, 25,200 pcs/h, 22 layers, 1,416 pcs/pallet) |
| Block Brick 390x190x190 | 800x800mm (8 pcs/layer, 6/hole, 1,680 pcs/h, 7 layers, 54 pcs/pallet) | 1200x1200mm (18 pcs/layer, 12/hole, 3,780 pcs/h, 7 layers, 120 pcs/pallet) | – |
| Paving Brick 190x50x115 | 950x950mm (95 pcs/layer, 65/hole, 19,950 pcs/h, 12 layers, 1,110 pcs/pallet) | 1140x1140mm (132 pcs/layer, 96/hole, 27,720 pcs/h, 12 layers, 1,548 pcs/pallet) | – |
| Item | Model | Power | Cycle Time | Weight | Brick Range | Applicable Specs |
| Low-Level Palletizer | MD1200 | 36.8KW | 13-15s/layer | 11T | Regular/Aligned (excl. triangular) | Model 4-15 |
| High-Level Palletizer | MD1200A | 35KW | 13-15s/layer | 19T | Standard bricks only | Model 4-15 |
| Stretch Wrapping Machine | CRM1300 | 1.3KW | 1-10r/min | 2.3T | Universal | Core: Ø68-80mm; Film: 268x500mm, 15-25um |
| Strapping Machine (Down) | DB1300 | 4.85kw | 2min/pallet | 1.8T | Fits high/low-level palletizers | Universal |
| Strapping Machine (Up) | DB1300A | 24.85kw | 2min/pallet | 3T | Fits high/low-level palletizers | Universal |
